H Type Layer Cage System – Automatic Layer Hen Cage Equipment
● Optimized design parameters, suitable for 8-9 birds per cage.
● High-strength sheet metal feed trough with a male-female connector design ensures a seamless connection, preventing feed accumulation at the bottom and serving as a high-quality running track for the handling cart.
● Equipped with a PVC chicken guardrail to prevent droppings from falling into the lower feed trough and to effectively prevent chickens from pecking at eggs on the egg carton.
● Each layer is equipped with a top mesh to prevent chickens from pecking at droppings on the upper manure carton.
● The horizontal sliding cage door utilizes the feed trough as a sliding path, making operation easy and preventing injury to chickens during daily handling.
Parameters

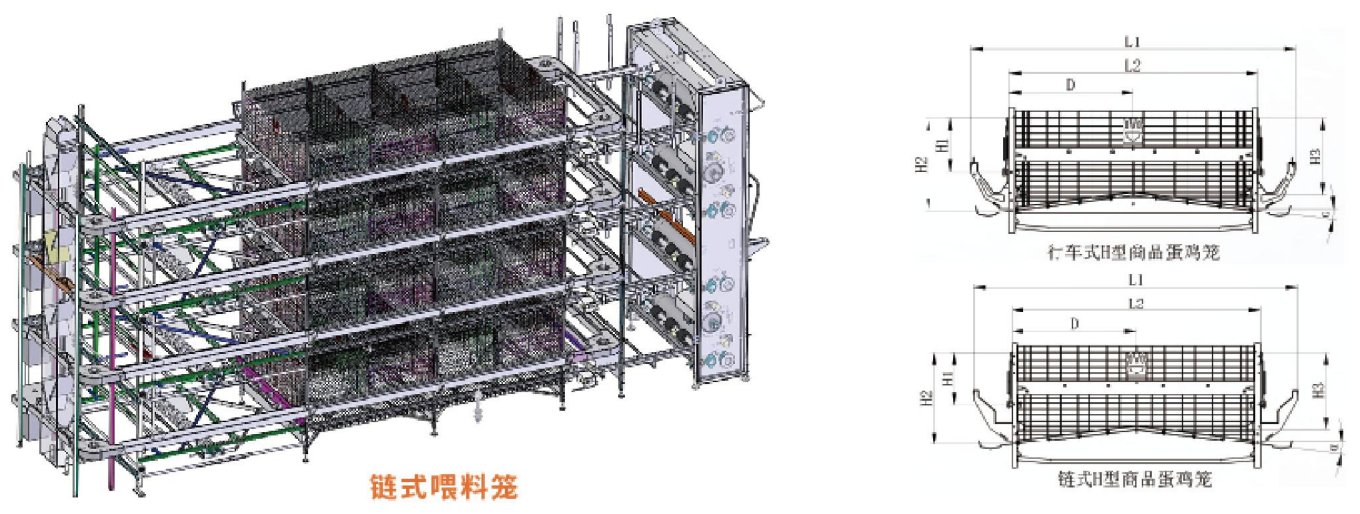

1.H type layer cage with chain feeding
| Cage parameters | Unit | H-type commercial layer hen cage (crane feeding) | H-type commercial layer hen cage (chain feeding) |
| Standard height/tier | mm | 700 | 700 |
| D(Cage depth ) | mm | 635 | 635 |
| L(Cage width ) | mm | 603 | 603 |
| H1(Cage door height) | mm | 236 | 236 |
| H2(Cage front height) | mm | 473 | 473 |
| H3(Cage rear height ) | mm | 397 | 397 |
| S(Bottom mesh sqcm ) | cm² | 3829 | 3829 |
| α(Bottom mesh angle ) | 0 | 7 | 7 |
| N(Number of birds/cage) | bird/unit | 9 | 9 |
| S(Space/birds) | cm² | 425 | 425 |
| L2(Cage width ) | mm | 1270 | 1270 |
| L1(System width ) | mm | 1655 | 1660 |
2. H type layer cage with crane feeding
| Number of floors | 3 | 4 | 5 | 6 tiers (3+3) crane feeding | 8 tiers (4+4) crane feeding |
| A | 2810mm | 3510mm | 4210mm | 5391mm | 6791mm |
| B | 2760mm | 3460mm |
| Number of floors | 3 | 4 | 5 | 6 tiers (3+3) chain feeding | 8 tiers (4+4） chain feeding |
| A | 2596mm | 3026mm | 3726mm | 4988mm | 6066mm |
| B | 2460mm | 3230mm |
3. H Type Layer Cage Product Advantages
3.1Increase Egg Production Efficiency
The optimized cage design creates a comfortable living environment for hens, helping improve laying performance and egg production rates.
3.2Reduce Labor Costs
Fully automated feeding, drinking, egg collection, and manure removal systems significantly reduce manual labor requirements.
3.3Improve Egg Quality
Automatic egg collection minimizes egg damage and contamination, ensuring higher-quality eggs reach the market.
3.4Maximize Space Utilization
The multi-tier structure allows farmers to raise more hens within the same poultry house area, increasing overall production capacity.
3.5Enhance Farm Biosecurity
Automated operation reduces human contact with birds and helps improve farm hygiene and disease prevention measures.
3.6Long Equipment Service Life
The hot-dip galvanized coating protects against rust and corrosion, reducing maintenance costs and extending equipment lifespan.
4.H type layer cage applications
The H Type Layer Cage Equipment is ideal for:
Commercial Egg Production Farms
Large-Scale Layer Farms
Integrated Poultry Farming Projects
Poultry Farm Expansion Projects
Modern Automated Egg Production Facilities
Agricultural Investment Projects
Government Poultry Development Programs
Technical Support & Customized Solutions
We provide complete poultry farm solutions, including:
Poultry Farm Layout Design
Poultry House Design
Equipment Manufacturing
Installation Guidance
Technical Training
After-Sales Service
Farm Automation Upgrading Solutions
Customized cage configurations are available according to poultry house dimensions, farm capacity requirements, climate conditions, and local market demands.
5.Contact us for much more details and related project reference
Product Details
 | ● The automatic egg collection system significantly reduces labor costs, improves production efficiency, and reduces the risk of disease transmission. ● Egg collection capacity: ≥12,000 eggs per hour. ● Stable operation, low egg breakage rate (less than 3‰). ● Simple structure, equipped with belt tensioning and correction devices, and easy maintenance. |
 | ● The manure belt adjustment system uses a chain and bolts for precision and efficiency. ● The egg buffer device (egg-blocking line) effectively reduces the probability of eggs breaking due to collisions as they roll from the cage onto the egg belt. ● It allows moisture from the eggshells to evaporate on the bottom mesh, reducing dust and chicken feathers on the eggshell surface. |
 | ● Made with zinc-aluminum alloy wire and advanced welding technology. ● Smooth, burr-free cage mesh that won't injure the chickens. ● The 7° slope of the bottom mesh ensures eggs roll out smoothly, reducing breakage within the cage. |
 | ● Highly efficient filtration of soft-shelled eggs and contaminants, preventing soft-shelled eggs from contaminating other eggs at the tiered egg collection point. ● Adjusts the eggs to be transported to the tiered egg collection system in the optimal posture, ensuring that eggs in each row of cages are evenly distributed across the tiers, avoiding collisions and reducing the breakage rate. |
 | ● The feed equalizer ensures highly accurate feed dispensing. ● The overhead conveyor structure minimizes feed blockage and component separation. ● The hopper has a capacity of 90L (approximately 60kg), which is sufficient to meet the chickens' feed intake by feeding them four times a day. |
 | ● Equipped with a two-stage PU material scraper, it efficiently cleans the manure belt, preventing cross-contamination caused by feces and minimizing damage to the belt itself, thus ensuring its lifespan. ● The multi-layer scraper adjustment uses a linkage rod mechanism, reducing labor intensity. |
FAQ
1.What are the advantages of H type layer cage equipment?
H type layer cage equipment can improve space utilization, reduce labor costs, increase egg production efficiency and provide a cleaner farming environment.
2.How many chickens can be raised in layer cage systems?
The capacity depends on the poultry house size and cage configuration. Our systems can support small farms as well as large commercial farms with tens of thousands of layers.
3.Is automatic egg collection available?
Yes. Our layer cage systems can be equipped with automatic egg collection systems to improve efficiency and reduce egg breakage.
4.What poultry equipment do you manufacture?
We manufacture a full range of poultry farming equipment, including layer cage systems, broiler cage systems, breeder farming equipment, feeding systems, drinking systems, ventilation systems, cooling pad systems, manure removal systems and environmental control systems.
5.Do you provide turnkey poultry farm solutions?
Yes. We provide complete turnkey poultry farm solutions, including poultry house design, equipment manufacturing, installation guidance and technical support.
6.Which countries do you export to?
Our poultry equipment has been exported to Africa, Southeast Asia, the Middle East and South America, including Nigeria, Kenya, Uganda, Indonesia, Philippines and many other countries.
7.Can you customize poultry equipment?
Yes. We provide customized poultry farming equipment solutions according to farm size, climate conditions and customer requirements.
