H-type broiler individual cages
● Made of Z275 galvanized steel sheet, offering strong corrosion resistance and extended service life; its rational structural design ensures long-term strength.
● A rearing height of 450mm and a layer height of 600mm improve ventilation and enhances breeding performance.
● Feeding is done on one side, while chickens are handled on the other, making it easier to remove chickens and increasing efficiency.
● The upright frame features horizontal hanging wire mesh beams and support beams, ensuring greater stability.
● Heating pipes run through the horizontal hanging wire mesh beams, promoting healthier chicken growth.
● The cage body uses stainless steel bolts, making it more corrosion-resistant and less prone to rust.

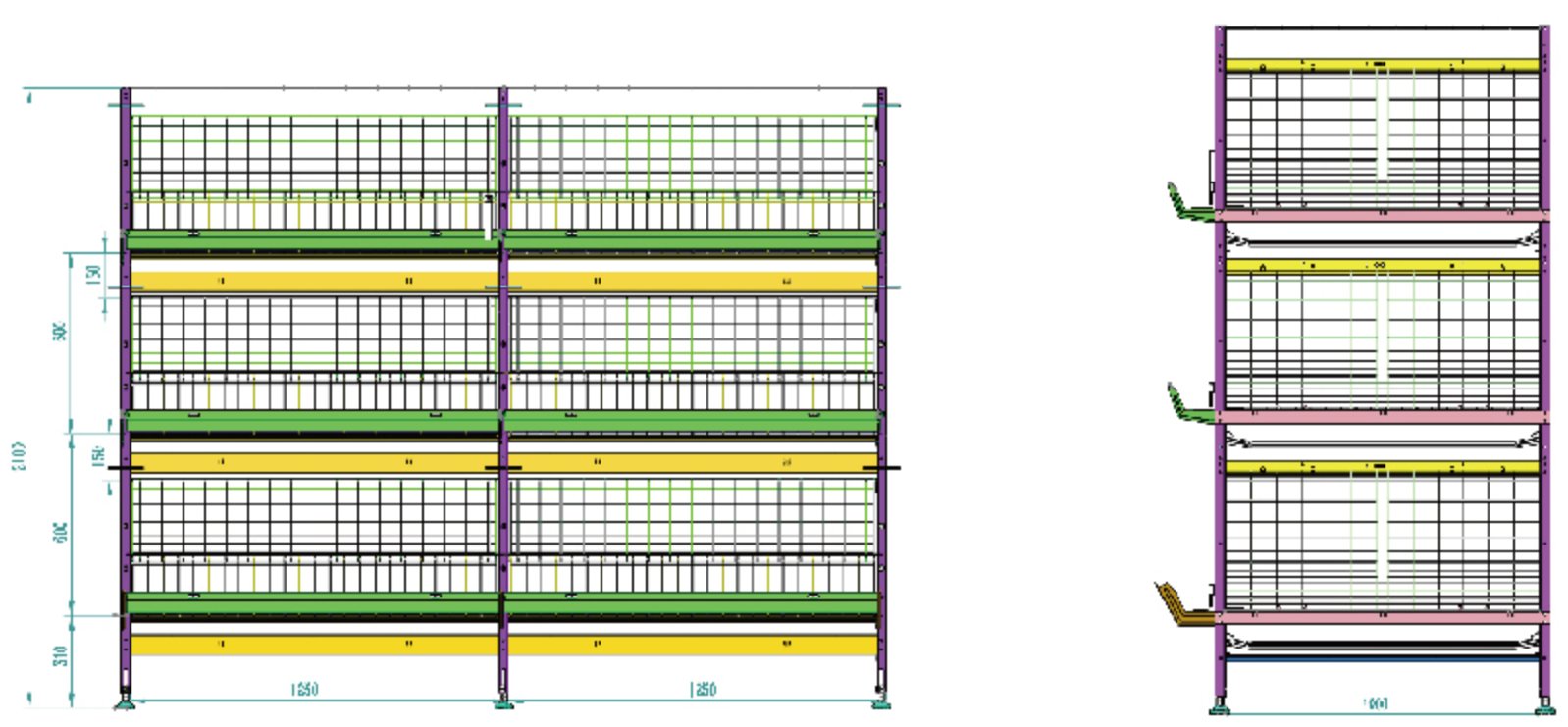

Parameters
![]()
| Number of cage layers | Unit | 3 floors | 4 floors |
| Cage length | (mm) | 1250 | 1250 |
| Cage depth | (mm) | 1000 | 1000 |
| Cage height | (mm) | 450 | 450 |
| Floor height | (mm) | 600 | 600 |
| Cage height | (mm) | 2100 | 2700 |
| Number of chickens per cage | (只) | 25 | 25 |
| Number of chickens per group | (只) | 75 | 100 |
Note: Stocking density is 50 kg/m² (calculated based on 2.5 kg/animal).
